The Ultimate Guide to Outdoor Pipe Insulation Wrap for Winter Freeze Protection

Winter brings a serene beauty to the landscape, but for homeowners, the drop in temperature signals a critical maintenance period. Among the most overlooked yet potentially disastrous issues during a cold snap is the freezing of outdoor pipes. When water freezes, it expands with tremendous force—enough to rupture copper, PVC, and steel pipes. The resulting damage can lead to flooding, structural water damage, and repair bills running into the thousands.

The first line of defense against this winter hazard is high-quality outdoor pipe insulation. Whether you are looking to insulate a main water line entering the house, an outdoor sprinkler system, or exposed plumbing in a crawl space, the right insulation wrap acts as a thermal barrier, keeping the cold out and the residual heat in.

In this comprehensive guide, we will explore the science of freeze protection, the different types of insulation materials available, and review the top products on the market to help you safeguard your home this winter.

Understanding the Risk: Why Pipes Burst

Before diving into the solutions, it is essential to understand the problem. Many homeowners assume that pipes burst simply because of the ice expanding outward against the pipe walls. However, the mechanics are often more complex. As an ice blockage forms within a pipe, it increases water pressure downstream (between the blockage and the closed faucet). It is this spike in hydraulic pressure that often causes the pipe to split, sometimes far away from the actual frozen section.

This is why insulation is critical. By maintaining the ambient temperature around the pipe above the freezing point (32°F or 0°C), you prevent the initial formation of the ice blockage.

The Benefits of Pipe Insulation Beyond Freeze Protection

While winter protection is the primary goal, quality pipe insulation offers year-round benefits:

1. Energy Efficiency: For hot water pipes running through unheated spaces, insulation prevents heat loss, meaning hot water reaches your faucet faster and with less energy expenditure.
2. Condensation Control: In humid summers, cold water pipes can “sweat,” leading to moisture buildup, mold growth, and water damage in basements or crawl spaces. Insulation acts as a vapor barrier.
3. Noise Reduction: Foam insulation can dampen the sound of water rushing through pipes (water hammer), creating a quieter home environment.

Types of Pipe Insulation Materials

When shopping for pipe protection, you will generally encounter three main form factors:

1. Self-Adhesive Insulation Tape

This acts like a thick, insulating bandage. It is typically made of foam or a fiber material with a sticky backing.

• Best For: Elbows, T-joints, valves, and short runs of pipe where rigid tubing is difficult to install.
• Pros: Extremely versatile; creates a tight air seal.

2. Tubular Foam (Split-Sleeve)

These are long tubes of polyethylene or rubber foam, usually pre-slit down the length for easy application.

• Best For: Long, straight runs of pipe (like main water lines).
• Pros: Fast installation; high R-value (thermal resistance).

3. Foil-Backed Wraps

These combine a foam core with an aluminum foil outer layer.

• Best For: Outdoor exposure where UV rays might degrade standard foam, and for reflecting heat back into the pipe.
• Pros: Excellent thermal properties; durable against the elements.

---

Top Product Reviews: The Best Outdoor Pipe Insulation Solutions

We have analyzed the market to bring you the best options for winterizing your plumbing. Here are our top recommendations based on durability, ease of installation, and thermal performance.

1. The Heavy-Duty Adhesive Solution: Duck Brand Insulation Tape

When dealing with tricky plumbing configurations—like the tangle of pipes near a pool pump or a complex sprinkler manifold—standard rigid tubes just don’t fit. This is where the Duck Brand Insulation Sealing Adhesive shines. Duck Brand is a household name for a reason; their adhesive technology is superior, ensuring the wrap stays put even in damp conditions.

This product features a foam-like material that provides a thermal barrier. It is designed to be wrapped in a spiral fashion around the pipe. The key advantage here is the seal. Because you are overlapping the tape as you wrap, you eliminate the “seam” issues found in tubular insulation where cold air can sneak in. It is flexible, easy to cut, and conforms to valves and faucets effortlessly.

2. The Professional Foil-Backed Wrap: Adhesive Aluminum Insulation

For those seeking maximum thermal reflection, the Insulation Adhesive Aluminum Sprinkler Protection is a standout choice. This product utilizes a multi-layer approach: a core of insulating foam/rubber faced with a durable aluminum foil layer.

The aluminum serves two purposes. First, it reflects radiant cold away from the pipe and reflects internal heat back in. Second, it acts as a robust shield against UV radiation and physical abrasion. If your pipes are exposed to direct sunlight, standard black foam can degrade and crumble over time. This foil-backed option resists that degradation, making it ideal for outdoor sprinkler risers and exposed main lines.

3. The High-Performance Rubber Tape: QWORK Insulation Tape

If you live in an area with high humidity or frequent rain, you need insulation that won’t become waterlogged. Wet insulation loses its R-value effectively becoming useless. QWORK Insulation Waterproof Adhesive is designed with a rubberized foam structure that is naturally water-repellent.

This tape is dense and provides excellent shock absorption as well as thermal protection. It has a strong adhesive backing that bonds well to PVC, copper, and iron. It is particularly effective for HVAC components and outdoor pipes that might experience condensation, as the waterproof nature prevents mold growth beneath the wrap.

4. The Versatile 2-Inch Tape: Heat Resistant Pipe Insulation

Sometimes you need coverage and speed. The Inch Pipe Insulation Tape (ASIN B0B8W5S9CY) offers a wider 2-inch profile, allowing you to cover more pipe surface area with fewer wraps. This is a significant time-saver on larger projects.

This tape is noted for its heat resistance, making it suitable not just for freeze protection on cold pipes, but also for insulating hot water lines to prevent heat loss. The material is compressible, allowing you to wrap it tight around valve handles and spigots without losing its insulating properties.

5. The Tubular Defender: Foil-Faced Foam Tube (B09FDHV8GS)

For long, straight runs of pipe, wrapping with tape can be tedious. This is where Pipe Insulation Foam Tube with Foil excels. This is a pre-formed tube that you simply snap over the pipe. However, unlike standard pool-noodle style insulation, this product features a foil exterior.

The foil adds a layer of rigidity and protection against tearing. It also improves the fire resistance and thermal retention of the tube. This style is incredibly easy to install: just open the slit, place it over the pipe, and seal the seam (usually with included adhesive or separate foil tape). It gives a clean, professional look to your exterior plumbing.

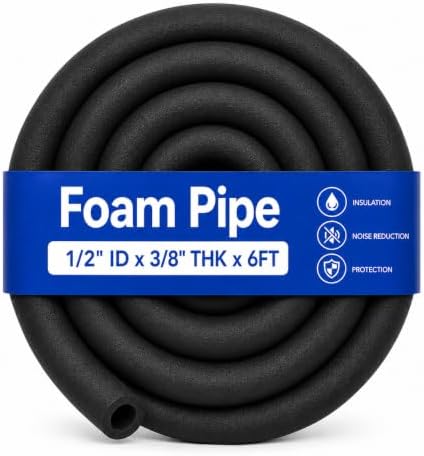

6. The Thick Wall Protector: Foam Tube Protection (B0DXP7CTS2)

Insulation effectiveness is largely determined by thickness. A thin layer may not suffice in sub-zero temperatures. The Pipe Insulation Foam Tube Protection is designed with a focus on wall thickness to provide a substantial barrier against the cold.

This product uses a closed-cell foam structure. Closed-cell foam is superior for outdoor use because the tiny gas bubbles within the foam are sealed off from each other, preventing water absorption. This makes the tube impervious to rain and snow, ensuring consistent performance throughout the winter.

7. The Comprehensive Wrap: Adhesive Pipe Wrap (B0CHFJL669)

Balancing ease of use with performance, this Pipe Wrap Insulation offers a self-adhesive solution that is thicker than standard tapes but more flexible than rigid tubes. It is designed to bridge the gap between the two styles.

This wrap is particularly good for retrofitting older plumbing systems where pipes might be close against a wall or other obstruction. Rigid tubes require clearance all the way around the pipe, but this wrap can be threaded through tight spaces to ensure 360-degree coverage.

8. The Sprinkler Specialist: Foam Tube for Sprinklers (B0FNVVJ43Z)

Sprinkler systems are notoriously vulnerable to freezing because they are often shallower than main water lines and have exposed backflow preventers. The Pipe Insulation Foam Tube Sprinkler is sized and formulated specifically for these irrigation components.

It offers high elasticity and strong tensile strength, meaning it won’t snap or tear easily when you are bending it around the angles of a sprinkler manifold. Protecting your sprinkler system is vital, as a burst pipe here can go unnoticed for days, wasting massive amounts of water and destroying your landscaping.

---

Installation Guide: How to Properly Insulate Outdoor Pipes

Buying the right product is only half the battle. Proper installation is crucial to ensure the insulation performs as intended. Here is a step-by-step guide to winterizing your pipes using the products mentioned above.

Step 1: Preparation and Cleaning

Never apply insulation to a dirty or wet pipe.

• Wipe Down: Use a rag and a mild cleaner to remove dust, grease, and spiderwebs from the pipes.
• Dry Completely: If the pipe is wet, the adhesive on the tape or wrap will fail. Ensure the pipe is bone dry.
• Inspect: Look for existing leaks. Insulation will hide a leak, causing water to pool inside the wrap and corrode the pipe. Fix leaks before insulating.

Step 2: Choosing the Right Method

• Straight Runs: Use tubular foam (like B09FDHV8GS or B0DXP7CTS2). It’s faster and cleaner.
• Corners/Valves: Use adhesive tape (like Duck Brand B0CJXFLQV5 or QWORK B08R6RQR6C). Tubes don’t bend 90 degrees well without cutting and mitering, which creates gaps. Tape seals perfectly.

Step 3: Installing Tubular Insulation

1. Measure the length of the pipe and cut the foam tube to size.
2. Open the pre-cut slit and slide it over the pipe.
3. Critical Step: You must seal the slit. Some tubes come with self-sealing adhesive strips. If not, use duct tape or cable ties every foot to keep the tube closed.
4. Butt the ends of adjacent tubes tightly together. Tape over the joint to prevent cold air intrusion.

Step 4: Installing Insulation Tape

1. Start by anchoring the tape on the pipe.
2. Wrap in a spiral motion, overlapping the previous layer by about 50% (half an inch). This “double wrapping” ensures there are no thin spots.
3. Do not pull the tape too tight. Compressing foam reduces its air pockets, which lowers its insulation value (R-value). Wrap it snug, but not crushed.

Step 5: The Spigot (Hose Bib)

Don’t forget the faucet itself! Wrap the pipe leading up to the faucet with tape. For the faucet handle and spout, you can use a specifically designed hard-shell faucet cover, or continue wrapping with the flexible adhesive tape (B0CHFJL669) until it is fully cocooned.

Advanced Tips for Extreme Climates

If you live in an area where temperatures regularly drop well below zero, insulation alone might not be enough. Insulation slows down heat loss, but it doesn’t create heat.

1. Heat Tape (Heat Cable):
Consider installing electric heat tape under the insulation. This cable plugs into an outlet and gently warms the pipe when temperatures drop. Note: Ensure the insulation you choose is rated for use with heat cables (most fiberglass and certain foams are safe, but check the manufacturer’s specs).

2. Dripping Faucets:
Even with the best insulation (like the foil-backed B0DFYLN42S), if the water sits perfectly still in -20°F weather, it can freeze. Allowing a faucet to drip very slightly keeps water moving, which makes it much harder to freeze.

3. Seal Air Leaks:
Insulating the pipe is great, but if the pipe is in a drafty crawl space, the cold wind will strip heat away rapidly (wind chill). Seal vents and cracks in your home’s foundation to reduce the cold air load on the plumbing.

FAQ: Common Questions About Pipe Insulation

Q: What R-value do I need for pipe insulation?
A: Generally, for outdoor pipes, you want the highest R-value possible given the space constraints. R-3 is a common baseline for tubular foam. Thicker foam (1 inch wall thickness) provides better protection than standard 3/8 inch walls.

Q: Can I use pool noodles to insulate pipes?
A: While they look similar, pool noodles are not designed for thermal retention or fire resistance. They often degrade quickly in sunlight and don’t provide a tight seal. Stick to dedicated plumbing products like the QWORK or Duck Brand options listed above.

Q: How long does pipe insulation tape last?
A: High-quality tape, especially foil-backed or rubberized versions, can last 5-10 years. However, you should inspect outdoor insulation annually. UV rays and wildlife (birds/rodents) can damage it.

Q: Should I insulate both hot and cold water pipes?
A: Yes. Cold water pipes need it to prevent freezing and sweating. Hot water pipes need it to prevent freezing (if the water isn’t running) and to save energy by retaining heat.

Conclusion

The cost of a few rolls of Duck Brand Insulation Tape or Foil-Backed Foam Tubing is negligible compared to the thousands of dollars required to repair a burst water main and remediate water damage. Winterizing your outdoor plumbing is a manageable DIY project that pays dividends in peace of mind.

Whether you choose the heavy-duty adhesion of the QWORK tape for wet areas, the UV-resistant Aluminum Adhesive Wrap for exposed lines, or the easy-to-install Foam Tubes for long runs, the key is to act before the first hard freeze. Take the time this weekend to inspect your perimeter, measure your pipes, and install the protection your home deserves.

Stay warm, and keep those pipes flowing!
